Product Overview



Plastic limit stop blocks for stator assemblies provide precise mechanical registration inside electric motor housings. These components prevent axial and rotational migration of the stator lamination stack under vibration and thermal cycling. Molded from high-performance engineering thermoplastics, they replace traditional metal shims and die-cast locating tabs to eliminate eddy current loops, reduce assembly mass, and lower unit costs.


First
12
Last

Types & Configurations

Axial Positioning Blocks

Step-profile designs featuring integrated locating pins to establish exact stack height relative to housing shoulders.

Radial Limit Stops

Wedge and arc-segment geometries that center the stator outer diameter within cylindrical housings, maintaining uniform air gaps.

Interlocking Snap-Fit Blocks

Multi-point retention components featuring flexible barb geometries for tool-free pre-assembly retention prior to housing thermal shrinking or bolting.

Custom Profile Blocks

Engineered counter-bores and channel configurations matched to specific lamination skew angles and lamination pack depths.




Materials & Construction

01/

Polyamide 66 (PA66-GF30): 30% glass-fiber reinforced variant offering high tensile strength, minimal thermal expansion, and a continuous use temperature of 120°C.

02/

Polybutylene Terephthalate (PBT-GF30): Selected for electrical isolation, low moisture absorption, and dimensional stability in humid operating environments.

03/

Polyphenylene Sulfide (PPS-GF40): Deployed for high-performance automotive and industrial motors requiring continuous thermal endurance up to 200°C and inherent flame retardancy (UL94 V-0).

04/

Processing Method: High-pressure precision injection molding utilizing electric servo-driven presses with cavity pressure sensors to control volumetric shrinkage.

Key Features


Dimensional Stability

Mold shrinkage controlled within 0.3% to 0.5% to maintain critical +/-0.02 mm feature tolerances.

Creep Resistance

High load-bearing retention under continuous compressive forces up to 15 MPa at 100°C.

Dielectric Isolation

Non-conductive polymer structure eliminates ground-fault pathways between stator laminations and aluminum or cast-iron housings.

Vibration Damping

Viscoelastic dampening properties absorb harmonic frequencies generated during motor commutation, reducing audible acoustic noise.





Applications

HVAC Blower Motors: Locating stator cores in high-humidity indoor air handler blower assemblies.


Automotive Cooling Fan Motors: Withstanding continuous under-hood thermal cycles ranging from -40°C to 125°C.


Industrial Servo Drives: Maintaining exact air-gap concentricity in high-torque servo motors under rapid acceleration profiles.


White Goods Appliance Motors: High-volume washing machine and compressor drive stator positioning.

Exterior Plastic Electrical Boxes



Manufacturing & Quality Control





Tooling Construction: P20 and H13 steel mold bases with conformal cooling channels milled via direct metal laser sintering (DMLS) to maintain mold surface temperatures within +/-1°C.
Molding Parameter Control: In-line closed-loop decoupling injection presses monitor melt temperature, injection velocity, and switch-over pressure per shot.

Inspection Protocols:
Coordinate Measuring Machine (CMM) verification for critical height and position datums.
Optical profile projection for flash and parting line evaluation.
Melt flow index (MFI) and ash content testing for incoming raw resin lots.

Traceability: Laser-etched cavity identification numbers on parts for full batch and raw material lot tracking.



Customization Options





Resin Modification

Custom color masterbatch blending for visual assembly inspection, anti-static additives, or laser-marking formulations.



Geometry Adaptation

Tailored mounting hole diameters, customized rib thickness, and modified draft angles to suit legacy housing designs.



Packaging Solutions

Anti-static ESD carrier trays or automated pick-and-place bulk packaging compatible with robotic assembly lines.







FAQ





Q: What raw material is recommended for motors operating above 130°C continuous ambient temperature?

A: PPS-GF40 (Polyphenylene Sulfide with 40% glass fiber) is specified for continuous operating environments exceeding 130°C. It maintains structural rigidity and mechanical load-bearing capacity up to 200°C without significant thermal creep.

Q: How is flash on locating surfaces prevented during injection molding?

A: Tooling parting lines are CNC-machined to sub-micron tolerances, and clamping tonnage is matched dynamically to projected part area. Injection velocity profiles are stepped down near cavity fill completion to prevent parting line separation and burr formation.

Q: What is the standard lead time for custom tooling development and prototype sampling?

A: Tooling fabrication requires 3 to 4 weeks depending on geometry complexity. Initial dimensional inspection reports and 50 prototype samples are delivered within 5 business days following first-article tool trials.

Q: Can these limit blocks withstand automated robotic press-fitting forces?

A: Yes. Flexural modulus ratings of glass-filled grades (such as PA66-GF30 at 8,500 MPa) provide sufficient rigidity to resist deflection and cracking during high-speed automated insertion into motor frames.

Q: What documentation is provided with production shipments?

A: Each shipment includes a Certificate of Analysis detailing raw material lot numbers, melt flow index test results, and CMM dimensional inspection reports mapped against customer drawing datums.

Q: How are moisture absorption variations in PA66 parts managed prior to customer assembly?

A: PA66 components are conditioned in controlled humidity chambers to reach equilibrium moisture content prior to shipping, or packaged in hermetically sealed moisture-barrier bags with silica gel desiccants to prevent dimensional shifts during transit.

With abundant experience, we are one of the most professional motor plastic parts manufacturers and suppliers in China. We warmly welcome you to wholesale bulk customized motor plastic parts from our factory. If you have any enquiry about free sample, please feel free to email us.

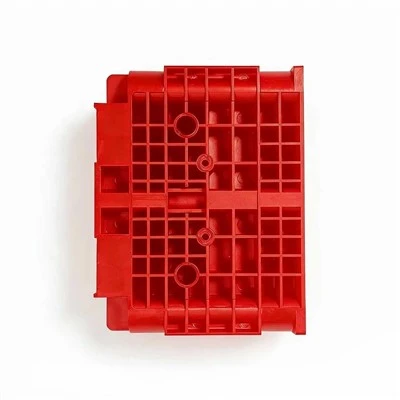

White 61 Stator End Plate, Red 58 Stator End Plate, motor plastic parts
