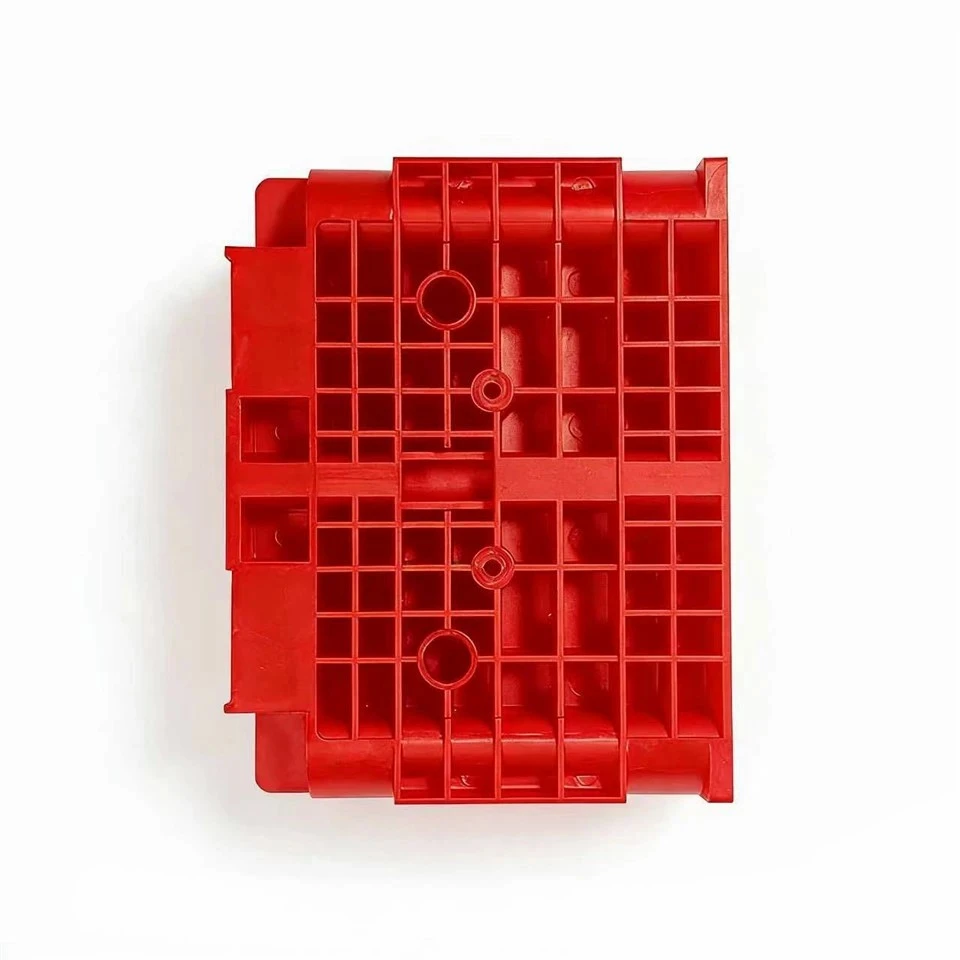

Red 58 Plastic Insulating Stator End Plate
Description
Technical Parameters
Product Description
Insulating accessories inside motors directly relate to motor-operation safety. Insulation failure may trigger severe faults such as short-circuit and motor burnout, constituting core components that cannot be overlooked by motor-manufacturing enterprises. Our Red 58 plastic insulating stator end plate is injection-molded from modified high-temperature-resistant plastic raw material, delivering outstanding electrical-insulation performance for assembly with 58-model AC-motor stators. Dimensional tolerances are strictly controlled; positioning holes are precise for perfect fitting with stator iron-cores during assembly without misalignment or warping-edge phenomena.
Motor accessories impose high requirements for batch-to-batch consistency. For each batch of Red 58 plastic insulating stator end plate, sampling insulation-performance and dimensional inspection are performed to mitigate assembly-defect risks. For overseas agents trading motor-components, this stator end plate serves as a must-have accessory for complete-machine assembly and maintenance-replacement of 58-series motors, enabling access to motor-assembly-plant and after-sales-repair-channel customers.
Specifications
|
Parameter Item |
Specification |
|
Product Name |
Red 58 plastic insulating stator end plate |
|
Applicable Model |
58-model motor stator |
|
Material |
Modified high-temperature-resistant engineering plastic |
|
Color |
Red |
|
Performance Features |
High-insulation, high-temperature-resistance, high dimensional precision |
Application Fields
Primarily used for stator-insulation protection of 58-model AC motors. Suitable for complete-machine assembly of household small-size motors and industrial micro-drive motors; also deployed as replacement-accessories for motor after-sales maintenance.
01
Factory Strength
Our factory launched production in 2012, covering 3,500 ㎡. Multiple full-automatic injection-molding equipment enables injection-molding of various motor-engineering-plastic accessories. Mature manufacturing processes are available for motor-accessory production, with 5-10-day lead-time for standard products. Located in Deqing, Zhejiang Province close to Shanghai and Ningbo export ports, it delivers mature full-container-shipping logistics and complies with local environmental-protection regulations.
02
Customization Capability
OEM and ODM customization is supported. Mold-opening and sampling production can be completed based on customer drawings or physical samples. Conventional MOQ for small-size accessories ranges from 5,000 to 10,000 units; quantity is negotiable combined with order unit-price. The development cycle for brand-new molds is 25-40 days. Samples are provided for confirmation at T0 phase. Samples are free-of-charge with shipping cost borne by customers; sample-shipping fees are waived for customers having paid mold-development expenses. Up to 2 colors or models can be mixed within one order.
03
Quality Control
We establish a complete end-to-end quality-inspection system: incoming raw-material verification and drying treatment to avoid material mixing and moisture exposure; regular mold maintenance; daily equipment inspection; mass-production only after first-article acceptance; periodic sampling inspection during production with isolated defective products; complete traceable batch-information for finished goods. Third-party-agency on-site factory inspection is accepted to safeguard purchasers' interests.
04
