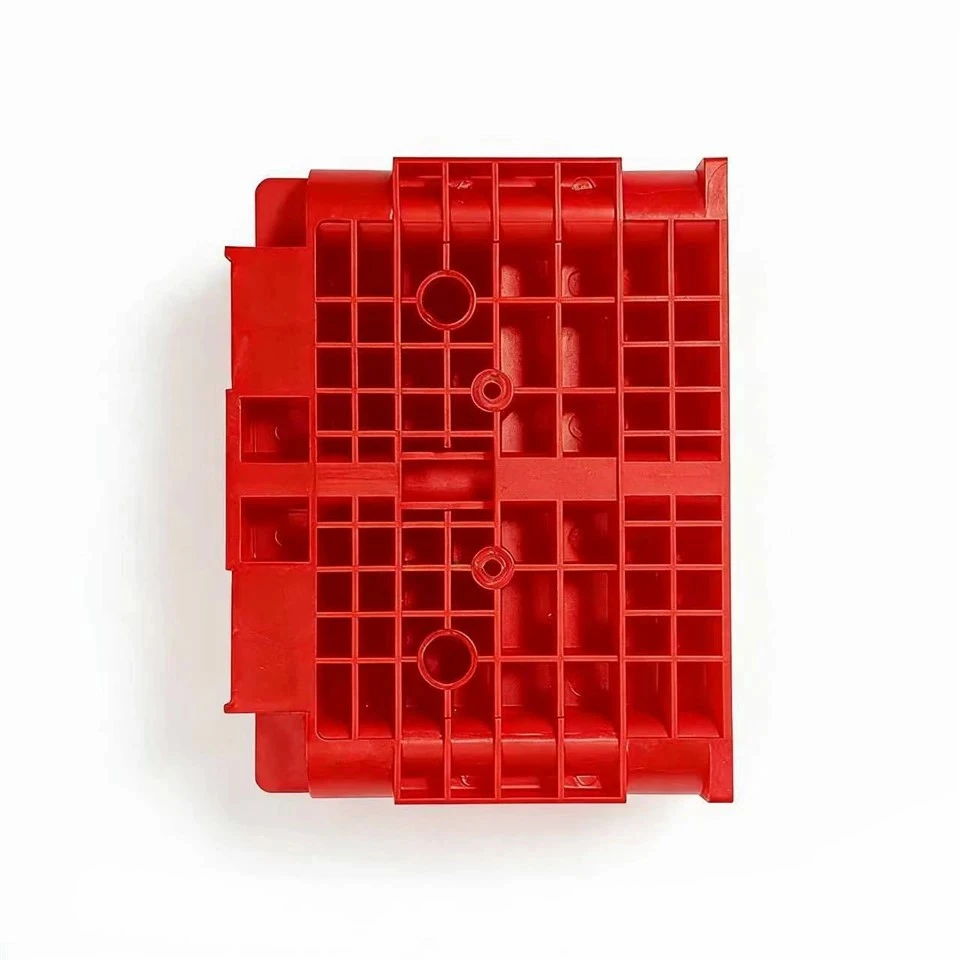

Plastic Motor Stator Positioning Limit Block
Description
Technical Parameters
Product Description
During the motor stator assembly process, the positioning limit block serves to fix the stator position and prevent offset during operation. Though small-sized, it demands extremely strict precision requirements. Our Plastic motor stator positioning limit block is injection-molded from high-strength modified plastic. It features suitable hardness and anti-fatigue performance, and is resistant to cracking and falling off under long-term motor vibration conditions. Its overall dimensions are strictly controlled with reasonable clamping clearances. After installation, the stator will not shift axially, ensuring stable motor operation.
Tiny precision parts are prone to burrs and dimensional drift. For every batch of Plastic motor stator positioning limit block, sampling dimensional inspection with calipers and assembly tests are carried out to screen out defective products. For overseas agents dealing in motor accessories, this limit block is a miniature internal motor component, an indispensable part for complete-machine assembly and repair kits.
Specifications
|
Parameter Item |
Specification |
|
Product Name |
Plastic motor stator positioning limit block |
|
Application Object |
Positioning and limiting of motor stator |
|
Material |
High-strength modified engineering plastic |
|
Color |
Customizable |
|
Performance Features |
Vibration-resistant, high dimensional accuracy, anti-fatigue |
Application Fields
Positioning and limiting during assembly of various small-and-medium-sized motor stators to restrict stator axial displacement. Used for complete motor manufacturing as well as motor repair kits.
01
Factory Strength
Our factory has been engaged in injection-molded plastic product production since 2012, covering an area of 3500 ㎡. Equipped with multiple full-automatic injection-molding machines of different tonnage, we excel in producing precision miniature plastic motor accessories. The monthly output ranges from 100,000 to 1,000,000 pieces depending on product specifications. Standard small-size parts like this item adopt existing molds with a lead-time of 5-10 days for orders. Located in Deqing, Huzhou, Zhejiang Province, the factory enjoys convenient export logistics close to Shanghai Port and Ningbo Port, and complies with local environmental-protection regulations.
02
Customization Capability
OEM and ODM customization is supported. Dimensions and colors can be adjusted according to customer drawings or physical samples. The conventional MOQ for small products ranges from 5,000 to 10,000 pieces, and the order quantity is negotiable. The mold development cycle is 25-40 days. Samples are produced at the T0 phase for customer confirmation. Samples are free of charge while freight shall be borne by customers; sample freight will be waived for customers who have paid mold-development fees. Up to 2 colors can be mixed within one MOQ order.
03
Qualifications & Standards
Records of raw materials, production and inspection are kept for the whole production process to achieve batch traceability. Third-party on-site factory inspection is acceptable. We can also cooperate with customers to complete relevant tests for market access requirements.
04
