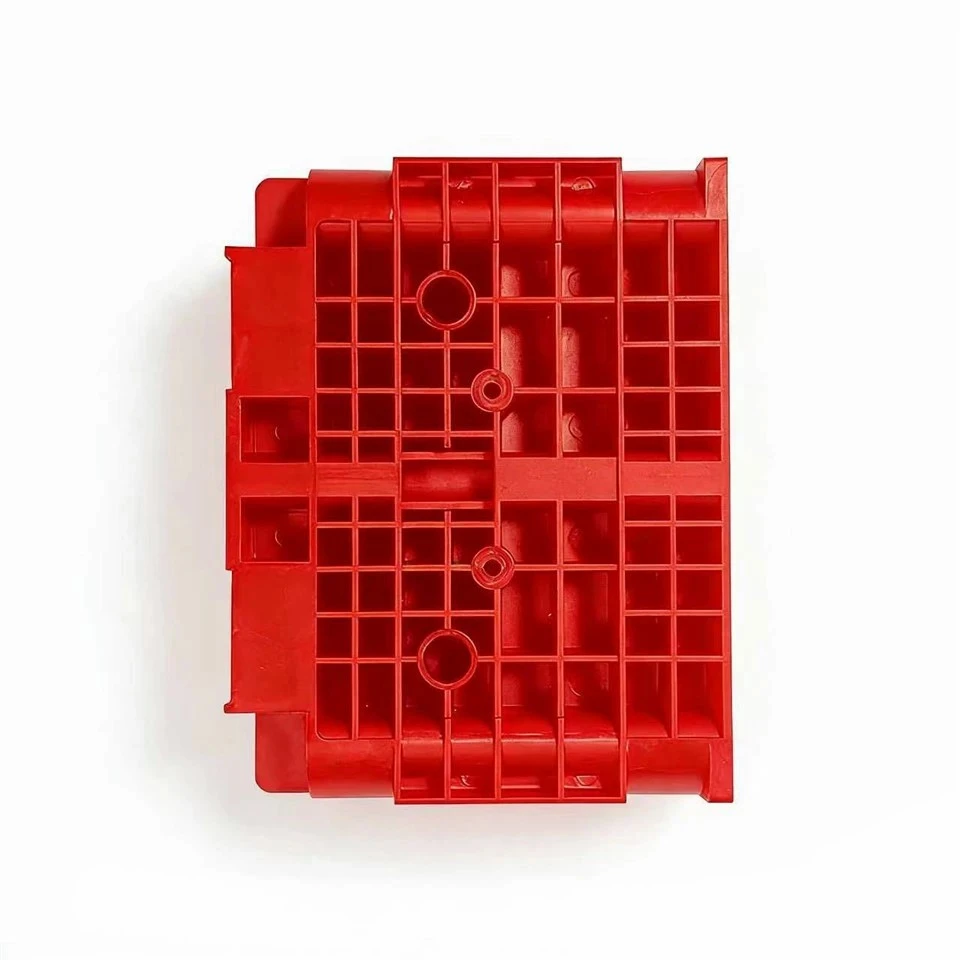

Plastic Limit Stop Block For Stator Assembly
Description
Technical Parameters
Product Description
During motor stator assembly procedures, limit stop blocks are used to control stator installation position and prevent assembly offset. Small as the part is, it is directly related to coaxiality of motors in subsequent operation. Our Plastic limit stop block for stator assembly is made of high-strength modified plastic. It features impact resistance and will not crack easily under assembly pressure. Its geometric dimensions are strictly controlled with flat stop surfaces to achieve precise stator assembly positioning and reduce motor abnormal noise faults caused by assembly deviation.
Assembly-oriented small-size parts tend to generate burrs and out-of-tolerance dimensions. Every batch of Plastic limit stop block for stator assembly will undergo sampling appearance and dimensional inspection to guarantee stable assembly processes. For overseas agents serving the motor-manufacturing industry, this accessory is a supporting component for motor assembly production lines, catering to procurement demands from complete-machine factories.
Specifications
|
Parameter Item |
Specification |
|
Product Name |
Plastic limit stop block for stator assembly |
|
Purpose |
Limiting and stopping during motor stator assembly |
|
Material |
High-strength modified engineering plastic |
|
Color |
Customizable |
|
Performance Features |
Resistant to assembly impact, precise positioning, burr-free |
Application Fields
Assembly stations for small-and-medium-sized motor stators to limit stator installation travel. It can also be used for internal operational limiting of some motors.
01
Quality Control
Our factory has specialized in injection-molded plastic-product manufacturing since 2012, covering a plant area of 3500 ㎡. Multiple full-automatic injection-molding machines of different tonnage enable mass-production of precision miniature plastic parts. As an off-the-shelf standard-grade item with existing molds, its lead-time for standard orders is 5-10 days. Located in Deqing, Huzhou, Zhejiang Province, the factory enjoys convenient export-oriented logistics close to Shanghai and Ningbo ports and complies with local environmental-protection regulations.
02
Packaging & Transportation
Export-oriented packaging is fully implemented per customer requirements. Small-size parts are packed in sealed inner bags plus outer cartons, with pallet-reinforced packaging added when necessary. For full-container orders, logistics vehicles can be booked in advance for container-loading coordinated with customer-designated freight forwarders. All trade-terms including EXW, FOB and DDP are supported.
03
Payment Terms
For standard finished-goods orders: 50% prepayment before production, 50% balance payment prior to shipment. For customized-product orders: 30% mold-development prepayment, 20% prepayment before production, 50% balance payment prior to shipment. Settlement in USD and EUR is supported. Multiple trade-terms including EXW, FOB and DDP can be implemented.
04
